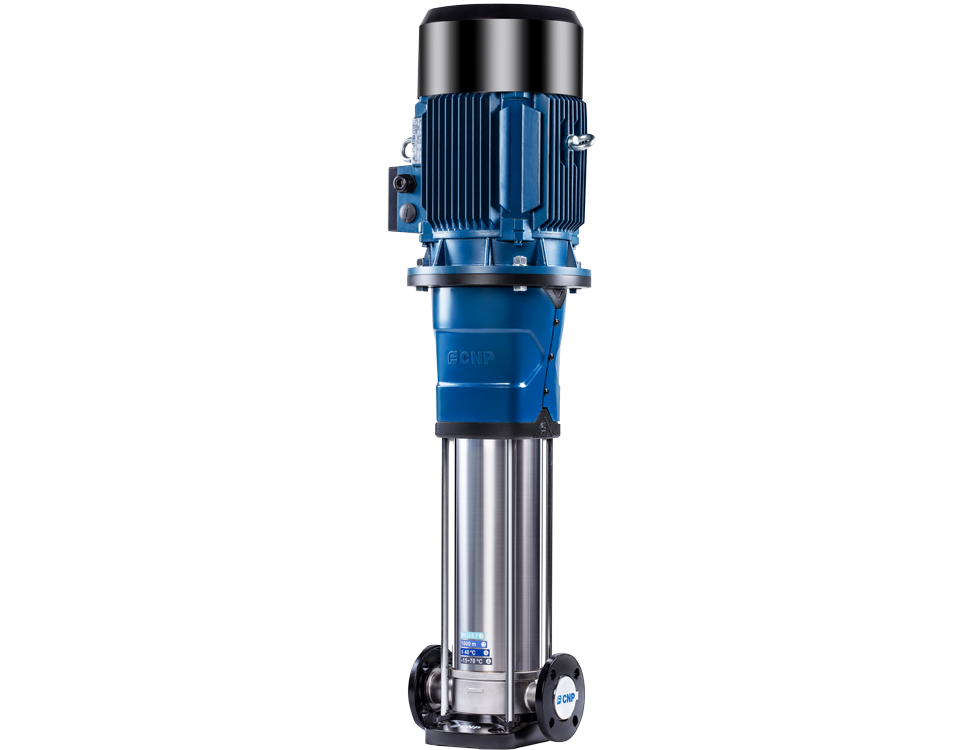

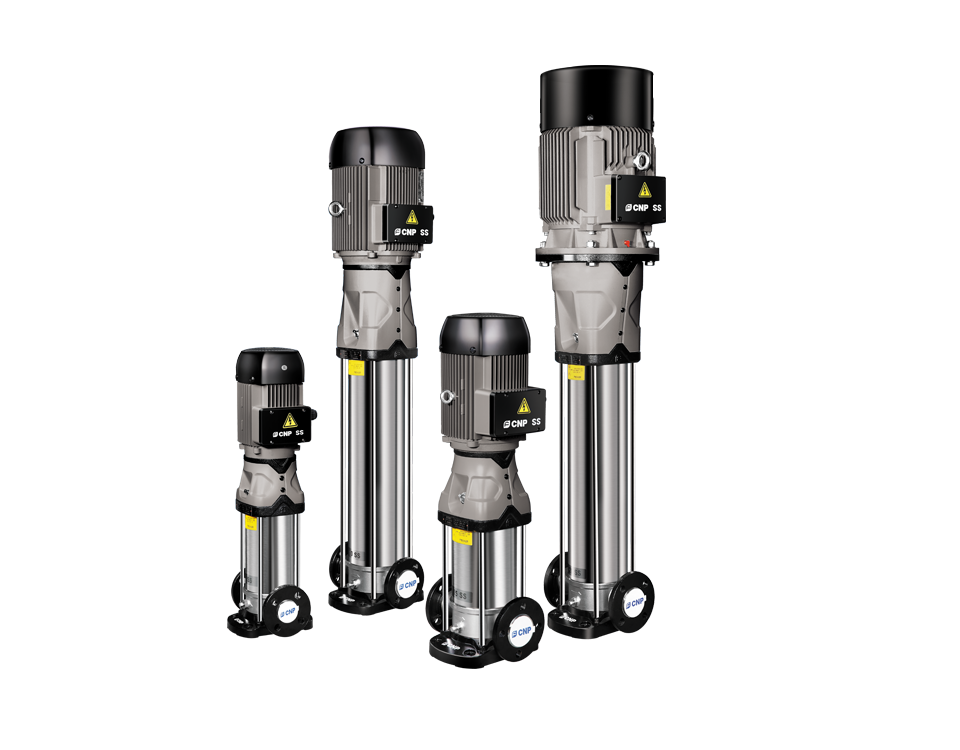

南方泵业参照欧洲标准自主研发的新一代、高效率非自吸立式多级离心泵。产品采用全新的工业设计，能效指标达到MEI≥0.7，叶轮导叶采用不锈钢板冲压焊接或不锈钢精密铸造制成，电机为全封闭，风冷式二极标准电机。部分水泵有现货，其它生产周期10天左右。
产品说明：
参照欧洲标准自主研发的新一代、高效率非自吸立式多级离心泵。产品采用全新的工业设计，能效指标达到MEI≥0.7，叶轮导叶采用不锈钢板冲压焊接或不锈钢精密铸造制成，电机为全封闭，风冷式二极标准电机。
性能及优点：
高效节能
低噪音、环保
结构紧凑、外形美观
重量轻、使用维护方便
可靠性高
应用范围：
水厂过滤与输送，分区送水、主管增压、高层建筑二次供水
流程水系统、清洗系统、高压冲洗系统、消防系统
冷却、锅炉给水和冷凝系统、机床配套、酸和碱
空调系统
超滤系统、反渗透系统、蒸馏系统、分离器、游泳池
技术参数：
流量：0.5m³/h～240m³/h
扬程：4m～305m
功率：0.37kW～110kW
液体温度：-15℃～+120℃
频率：50Hz
| 型号(点击查看详细) | 流量(m³/h) | 扬程(m) | 泵效率(%) | 轴功率(kW) | 转速(rpm) | 叶轮外径(mm) | 级数 | 介质温度（常温型） | 介质温度（热水型） | 电机功率(kW) | 机械密封 | 重量(kg) | |
| 组名: 1 | |||||||||||||
| CDM1-2 | 1 | 10.5 | 41 | 0.07 | 2900 | 74.5 | 2 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 23 | |
| CDM1-3 | 1 | 16 | 41 | 0.1 | 2900 | 74.5 | 3 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 23 | |
| CDM1-4 | 1 | 21.5 | 41 | 0.14 | 2900 | 74.5 | 4 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 24 | |
| CDM1-5 | 1 | 27 | 41 | 0.17 | 2900 | 74.5 | 5 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 24 | |
| CDM1-6 | 1 | 32.5 | 41 | 0.21 | 2900 | 74.5 | 6 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 25 | |
| CDM1-7 | 1 | 39 | 41 | 0.25 | 2900 | 74.5 | 7 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 25 | |
| CDM1-8 | 1 | 43.5 | 41 | 0.28 | 2900 | 74.5 | 8 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 27 | |
| CDM1-9 | 1 | 49 | 41 | 0.32 | 2900 | 74.5 | 9 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 27 | |
| CDM1-10 | 1 | 55 | 41 | 0.35 | 2900 | 74.5 | 10 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 28 | |
| CDM1-11 | 1 | 61 | 41 | 0.39 | 2900 | 74.5 | 11 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 28 | |
| CDM1-12 | 1 | 67 | 41 | 0.43 | 2900 | 74.5 | 12 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 31 | |
| CDM1-13 | 1 | 73 | 41 | 0.47 | 2900 | 74.5 | 13 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 31 | |
| CDM1-14 | 1 | 78 | 41 | 0.5 | 2900 | 74.5 | 14 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 28 | |
| CDM1-15 | 1 | 84 | 41 | 0.54 | 2900 | 74.5 | 15 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 32 | |
| CDM1-16 | 1 | 89 | 41 | 0.58 | 2900 | 74.5 | 16 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 31 | |
| CDM1-17 | 1 | 95 | 41 | 0.61 | 2900 | 74.5 | 17 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 35 | |
| CDM1-18 | 1 | 100 | 41 | 0.65 | 2900 | 74.5 | 18 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 32 | |
| CDM1-19 | 1 | 106 | 41 | 0.68 | 2900 | 74.5 | 19 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 36 | |
| CDM1-20 | 1 | 111 | 41 | 0.72 | 2900 | 74.5 | 20 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 33 | |
| CDM1-21 | 1 | 117 | 41 | 0.75 | 2900 | 74.5 | 21 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 33 | |
| CDM1-22 | 1 | 122 | 41 | 0.79 | 2900 | 74.5 | 22 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 37 | |
| CDM1-23 | 1 | 128 | 41 | 0.83 | 2900 | 74.5 | 23 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 39 | |
| CDM1-24 | 1 | 134 | 41 | 0.87 | 2900 | 74.5 | 24 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 39 | |
| CDM1-25 | 1 | 139 | 41 | 0.9 | 2900 | 74.5 | 25 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 44 | |
| CDM1-26 | 1 | 145 | 41 | 0.94 | 2900 | 74.5 | 26 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 40 | |
| CDM1-27 | 1 | 150 | 41 | 0.97 | 2900 | 74.5 | 27 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 45 | |
| CDM1-28 | 1 | 156 | 41 | 1.01 | 2900 | 74.5 | 28 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 41 | |
| CDM1-29 | 1 | 161 | 41 | 1.04 | 2900 | 74.5 | 29 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 42 | |
| CDM1-30 | 1 | 167 | 41 | 1.08 | 2900 | 74.5 | 30 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 46 | |
| CDM1-31 | 1 | 175 | 41 | 1.13 | 2900 | 74.5 | 31 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 44 | |
| CDM1-32 | 1 | 180 | 41 | 1.17 | 2900 | 74.5 | 32 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 49 | |
| CDM1-33 | 1 | 186 | 41 | 1.2 | 2900 | 74.5 | 33 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 45 | |
| CDM1-34 | 1 | 192 | 41 | 1.24 | 2900 | 74.5 | 34 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 50 | |
| CDM1-35 | 1 | 197 | 41 | 1.28 | 2900 | 74.5 | 35 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 46 | |
| CDM1-36 | 1 | 203 | 41 | 1.31 | 2900 | 74.5 | 36 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 51 | |
| CDM1-37 | 1 | 209 | 41 | 1.35 | 2900 | 74.5 | 37 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 47 | |
| CDM1-38 | 1 | 215 | 41 | 1.39 | 2900 | 74.5 | 38 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 51 | |
| CDM1-39 | 1 | 220 | 41 | 1.42 | 2900 | 74.5 | 38 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 48 | |
| CDM1-40 | 1 | 226 | 41 | 1.46 | 2900 | 74.5 | 40 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 52 | |
| 组名: 2 | |||||||||||||
| CDM3-2 | 3 | 11 | 58 | 0.16 | 2900 | 82 | 2 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 24 | |
| CDM3-3 | 3 | 17 | 58 | 0.24 | 2900 | 82 | 3 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 24 | |
| CDM3-4 | 3 | 23 | 58 | 0.32 | 2900 | 82 | 4 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 25 | |
| CDM3-5 | 3 | 29 | 58 | 0.41 | 2900 | 82 | 5 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 26 | |
| CDM3-6 | 3 | 35 | 58 | 0.49 | 2900 | 82 | 6 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 27 | |
| CDM3-7 | 3 | 41 | 58 | 0.58 | 2900 | 82 | 7 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 30 | |
| CDM3-8 | 3 | 47 | 58 | 0.66 | 2900 | 82 | 8 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 30 | |
| CDM3-9 | 3 | 53 | 58 | 0.75 | 2900 | 82 | 9 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 32 | |
| CDM3-10 | 3 | 59 | 58 | 0.83 | 2900 | 82 | 10 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 33 | |
| CDM3-11 | 3 | 65 | 58 | 0.92 | 2900 | 82 | 11 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 33 | |
| CDM3-12 | 3 | 71 | 58 | 1 | 2900 | 82 | 12 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 34 | |
| CDM3-13 | 3 | 77 | 58 | 1.09 | 2900 | 82 | 13 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 39 | |
| CDM3-14 | 3 | 83 | 58 | 1.17 | 2900 | 82 | 14 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 40 | |
| CDM3-15 | 3 | 90 | 58 | 1.27 | 2900 | 82 | 15 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 40 | |
| CDM3-16 | 3 | 96 | 58 | 1.35 | 2900 | 82 | 16 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 41 | |
| CDM3-17 | 3 | 102 | 58 | 1.44 | 2900 | 82 | 17 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 38 | |
| CDM3-18 | 3 | 108 | 58 | 1.52 | 2900 | 82 | 18 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 39 | |
| CDM3-19 | 3 | 114 | 58 | 1.61 | 2900 | 82 | 19 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 44 | |
| CDM3-20 | 3 | 120 | 58 | 1.69 | 2900 | 82 | 20 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 40 | |
| CDM3-21 | 3 | 126 | 58 | 1.78 | 2900 | 82 | 21 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 45 | |
| CDM3-22 | 3 | 132 | 58 | 1.86 | 2900 | 82 | 22 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 41 | |
| CDM3-23 | 3 | 138 | 58 | 1.95 | 2900 | 82 | 23 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 46 | |
| CDM3-24 | 3 | 144 | 58 | 2.03 | 2900 | 82 | 24 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 52 | |
| CDM3-25 | 3 | 150 | 58 | 2.11 | 2900 | 82 | 25 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 57 | |
| CDM3-26 | 3 | 156 | 58 | 2.2 | 2900 | 82 | 26 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 53 | |
| CDM3-27 | 3 | 162 | 58 | 2.28 | 2900 | 82 | 27 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 58 | |
| CDM3-28 | 3 | 168 | 58 | 2.37 | 2900 | 82 | 28 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 54 | |
| CDM3-29 | 3 | 175 | 58 | 2.47 | 2900 | 82 | 29 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 58 | |
| CDM3-30 | 3 | 181 | 58 | 2.42 | 2900 | 82 | 30 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 55 | |
| CDM3-31 | 3 | 187 | 58 | 2.64 | 2900 | 82 | 31 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 59 | |
| 组名: 3 | |||||||||||||
| CDM5-2 | 5 | 11.5 | 69 | 0.22 | 2900 | 82 | 2 | -15℃～+70℃ | -15℃～+120℃ | 0.37 | CDLA-12/WBF14 | 24 | |
| CDM5-3 | 5 | 17.5 | 69 | 0.34 | 2900 | 82 | 3 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 26 | |
| CDM5-4 | 5 | 24 | 69 | 0.47 | 2900 | 82 | 4 | -15℃～+70℃ | -15℃～+120℃ | 0.55 | CDLA-12/WBF14 | 27 | |
| CDM5-5 | 5 | 30 | 69 | 0.58 | 2900 | 82 | 5 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-12/WBF14 | 30 | |
| CDM5-6 | 5 | 37 | 69 | 0.71 | 2900 | 82 | 6 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 32 | |
| CDM5-7 | 5 | 42.5 | 69 | 0.83 | 2900 | 82 | 7 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 32 | |
| CDM5-8 | 5 | 49 | 69 | 0.95 | 2900 | 82 | 8 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-12/WBF14 | 33 | |
| CDM5-9 | 5 | 55 | 69 | 1.07 | 2900 | 82 | 9 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 38 | |
| CDM5-10 | 5 | 62 | 69 | 1.21 | 2900 | 82 | 10 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 39 | |
| CDM5-11 | 5 | 68 | 69 | 1.32 | 2900 | 82 | 11 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-12/WBF14 | 39 | |
| CDM5-12 | 5 | 74.5 | 69 | 1.44 | 2900 | 82 | 12 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 42 | |
| CDM5-13 | 5 | 80 | 69 | 1.56 | 2900 | 82 | 13 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 42 | |
| CDM5-14 | 5 | 87 | 69 | 1.69 | 2900 | 82 | 14 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 43 | |
| CDM5-15 | 5 | 93 | 69 | 1.81 | 2900 | 82 | 15 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 43 | |
| CDM5-16 | 5 | 99 | 69 | 1.93 | 2900 | 82 | 16 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-12/WBF14 | 44 | |
| CDM5-17 | 5 | 105 | 69 | 2.04 | 2900 | 82 | 17 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 50 | |
| CDM5-18 | 5 | 111 | 69 | 2.16 | 2900 | 82 | 18 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 55 | |
| CDM5-19 | 5 | 118 | 69 | 2.3 | 2900 | 82 | 19 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 51 | |
| CDM5-20 | 5 | 124 | 69 | 2.41 | 2900 | 82 | 20 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 51 | |
| CDM5-21 | 5 | 130 | 69 | 2.53 | 2900 | 82 | 21 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-12/WBF14 | 57 | |
| CDM5-22 | 5 | 136 | 69 | 2.63 | 2900 | 82 | 22 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 59 | |
| CDM5-23 | 5 | 142 | 69 | 2.76 | 2900 | 82 | 23 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 65 | |
| CDM5-24 | 5 | 149 | 69 | 2.9 | 2900 | 82 | 24 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 60 | |
| CDM5-25 | 5 | 155 | 69 | 3.02 | 2900 | 82 | 25 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 66 | |
| CDM5-26 | 5 | 161 | 69 | 3.13 | 2900 | 82 | 26 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 61 | |
| CDM5-27 | 5 | 168 | 69 | 3.25 | 2900 | 82 | 27 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 62 | |
| CDM5-28 | 5 | 174 | 69 | 3.39 | 2900 | 82 | 28 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-12/WBF14 | 67 | |
| CDM5-29 | 5 | 180 | 69 | 3.5 | 2900 | 82 | 29 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-12/WBF14 | 82 | |
| CDM5-30 | 5 | 186 | 69 | 3.62 | 2900 | 82 | 30 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-12/WBF14 | 88 | |
| CDM5-31 | 5 | 193 | 69 | 3.76 | 2900 | 82 | 31 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-12/WBF14 | 83 | |
| CDM5-32 | 5 | 200 | 69 | 3.89 | 2900 | 82 | 32 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-12/WBF14 | 84 | |
| CDM5-33 | 5 | 206 | 69 | 4.01 | 2900 | 82 | 33 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-12/WBF14 | 89 | |
| 组名: 4 | |||||||||||||
| CDM10-1 | 10 | 8 | 72 | 0.3 | 2900 | 100 | 1 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-16/WBF14 | 29 | |
| CDM10-2 | 10 | 16.5 | 72 | 0.62 | 2900 | 100 | 2 | -15℃～+70℃ | -15℃～+120℃ | 0.75 | CDLA-16/WBF14 | 30 | |
| CDM10-3 | 10 | 25.5 | 72 | 0.97 | 2900 | 100 | 3 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-16/WBF14 | 33 | |
| CDM10-4 | 10 | 34 | 72 | 1.29 | 2900 | 100 | 4 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-16/WBF14 | 39 | |
| CDM10-5 | 10 | 43 | 72 | 1.63 | 2900 | 100 | 5 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-16/WBF14 | 43 | |
| CDM10-6 | 10 | 52 | 72 | 1.97 | 2900 | 100 | 6 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-16/WBF14 | 44 | |
| CDM10-7 | 10 | 62 | 72 | 2.35 | 2900 | 100 | 7 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-16/WBF14 | 55 | |
| CDM10-8 | 10 | 71 | 72 | 2.69 | 2900 | 100 | 8 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-16/WBF14 | 56 | |
| CDM10-9 | 10 | 80 | 72 | 3.03 | 2900 | 100 | 9 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-16/WBF14 | 63 | |
| CDM10-10 | 10 | 89 | 72 | 3.37 | 2900 | 100 | 10 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-16/WBF14 | 64 | |
| CDM10-11 | 10 | 98 | 72 | 3.71 | 2900 | 100 | 11 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-16/WBF14 | 65 | |
| CDM10-12 | 10 | 107 | 72 | 4.05 | 2900 | 100 | 12 | -15℃～+70℃ | -15℃～+120℃ | 4.5 | CDLA-16/WBF14 | 66 | |
| CDM10-13 | 10 | 116 | 72 | 4.39 | 2900 | 100 | 13 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 86 | |
| CDM10-14 | 10 | 125 | 72 | 4.73 | 2900 | 100 | 14 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 87 | |
| CDM10-15 | 10 | 134 | 72 | 5.07 | 2900 | 100 | 15 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 88 | |
| CDM10-16 | 10 | 144 | 72 | 5.41 | 2900 | 100 | 16 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 97 | |
| CDM10-17 | 10 | 153 | 72 | 5.79 | 2900 | 100 | 17 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 98 | |
| CDM10-18 | 10 | 163 | 72 | 6.17 | 2900 | 100 | 18 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 99 | |
| CDM10-19 | 10 | 172 | 72 | 6.51 | 2900 | 100 | 19 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 100 | |
| CDM10-20 | 10 | 181 | 72 | 6.85 | 2900 | 100 | 20 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 101 | |
| CDM10-21 | 10 | 191 | 72 | 7.23 | 2900 | 100 | 21 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 102 | |
| CDM10-22 | 10 | 201 | 72 | 7.61 | 2900 | 100 | 22 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 168 | |
| 组名: 5 | |||||||||||||
| CDM15-1 | 15 | 11 | 71 | 0.63 | 2900 | 105.2 | 1 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-16/WBF14 | 33 | |
| CDM15-2 | 15 | 22.5 | 71 | 1.3 | 2900 | 105.2 | 2 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-16/WBF14 | 41 | |
| CDM15-3 | 15 | 34.5 | 71 | 1.99 | 2900 | 105.2 | 3 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-16/WBF14 | 52 | |
| CDM15-4 | 15 | 47 | 71 | 2.65 | 2900 | 105.2 | 4 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-16/WBF14 | 59 | |
| CDM15-5 | 15 | 58 | 71 | 3.31 | 2900 | 105.2 | 5 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-16/WBF14 | 61 | |
| CDM15-6 | 15 | 69 | 71 | 3.97 | 2900 | 105.2 | 6 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 83 | |
| CDM15-7 | 15 | 81 | 71 | 4.66 | 2900 | 105.2 | 7 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 84 | |
| CDM15-8 | 15 | 93 | 71 | 5.35 | 2900 | 105.2 | 8 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 91 | |
| CDM15-9 | 15 | 106 | 71 | 6.04 | 2900 | 105.2 | 9 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 92 | |
| CDM15-10 | 15 | 118 | 71 | 6.74 | 2900 | 105.2 | 10 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 150 | |
| CDM15-11 | 15 | 130 | 71 | 7.43 | 2900 | 105.2 | 11 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 151 | |
| CDM15-12 | 15 | 142 | 71 | 8.12 | 2900 | 105.2 | 12 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 153 | |
| CDM15-13 | 15 | 152 | 71 | 8.81 | 2900 | 105.2 | 13 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 154 | |
| CDM15-14 | 15 | 165 | 71 | 9.5 | 2900 | 105.2 | 14 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 156 | |
| CDM15-15 | 15 | 178 | 71 | 10.19 | 2900 | 105.2 | 15 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 172 | |
| CDM15-16 | 15 | 189 | 71 | 10.88 | 2900 | 105.2 | 16 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 173 | |
| CDM15-17 | 15 | 201 | 71 | 11.57 | 2900 | 105.2 | 17 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 175 | |
| CDM15-18 | 15 | 213 | 71 | 12.26 | 2900 | 105.2 | 18 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 184 | |
| 组名: 6 | |||||||||||||
| CDM20-1 | 20 | 10.5 | 72 | 0.79 | 2900 | 105.5 | 1 | -15℃～+70℃ | -15℃～+120℃ | 1.1 | CDLA-16/WBF14 | 33 | |
| CDM20-2 | 20 | 23 | 72 | 1.67 | 2900 | 105.5 | 2 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-16/WBF14 | 41 | |
| CDM20-3 | 20 | 35 | 72 | 2.61 | 2900 | 105.5 | 3 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-16/WBF14 | 59 | |
| CDM20-4 | 20 | 47 | 72 | 3.48 | 2900 | 105.5 | 4 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 81 | |
| CDM20-5 | 20 | 58 | 72 | 4.39 | 2900 | 105.5 | 5 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-16/WBF14 | 83 | |
| CDM20-6 | 20 | 70 | 72 | 5.3 | 2900 | 105.5 | 6 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 92 | |
| CDM20-7 | 20 | 82 | 72 | 6.21 | 2900 | 105.5 | 7 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-16/WBF14 | 93 | |
| CDM20-8 | 20 | 95 | 72 | 7.19 | 2900 | 105.5 | 8 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 160 | |
| CDM20-9 | 20 | 107 | 72 | 8.1 | 2900 | 105.5 | 9 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 161 | |
| CDM20-10 | 20 | 119 | 72 | 9.01 | 2900 | 105.5 | 10 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-16/WBF14 | 163 | |
| CDM20-11 | 20 | 131 | 72 | 9.92 | 2900 | 105.5 | 11 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 180 | |
| CDM20-12 | 20 | 143 | 72 | 10.82 | 2900 | 105.5 | 12 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 181 | |
| CDM20-13 | 20 | 155 | 72 | 11.73 | 2900 | 105.5 | 13 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 182 | |
| CDM20-14 | 20 | 168 | 72 | 12.72 | 2900 | 105.5 | 14 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-16/WBF14 | 184 | |
| CDM20-15 | 20 | 180 | 72 | 13.62 | 2900 | 105.5 | 15 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-16/WBF14 | 202 | |
| CDM20-16 | 20 | 193 | 72 | 14.61 | 2900 | 105.5 | 16 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-16/WBF14 | 203 | |
| CDM20-17 | 20 | 205 | 72 | 15.52 | 2900 | 105.5 | 17 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-16/WBF14 | 205 | |
| 组名: 7 | |||||||||||||
| CDM32-1-1 | 32 | 9 | 68.2 | 1.15 | 2900 | 118.2 | 1 | -15℃～+70℃ | -15℃～+120℃ | 1.5 | CDLA-22/WBF16 | 64 | |
| CDM32-1 | 32 | 13 | 68.2 | 1.66 | 2900 | 118.2 | 1 | -15℃～+70℃ | -15℃～+120℃ | 2.2 | CDLA-22/WBF16 | 68 | |
| CDM32-2-2 | 32 | 20 | 68.2 | 2.56 | 2900 | 118.2 | 2 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-22/WBF16 | 77 | |
| CDM32-2 | 32 | 27 | 68.2 | 3.45 | 2900 | 118.2 | 2 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-22/WBF16 | 85 | |
| CDM32-3-2 | 32 | 33 | 68.2 | 4.22 | 2900 | 118.2 | 3 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-22/WBF16 | 100 | |
| CDM32-3 | 32 | 40 | 68.2 | 5.11 | 2900 | 118.2 | 3 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-22/WBF16 | 100 | |
| CDM32-4-2 | 32 | 46 | 68.2 | 5.88 | 2900 | 118.2 | 4 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-22/WBF16 | 109 | |
| CDM32-4 | 32 | 53 | 68.2 | 6.78 | 2900 | 118.2 | 4 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-22/WBF16 | 109 | |
| CDM32-5-2 | 32 | 60 | 68.2 | 7.67 | 2900 | 118.2 | 5 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 181 | |
| CDM32-5 | 32 | 67 | 68.2 | 8.57 | 2900 | 118.2 | 5 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 181 | |
| CDM32-6-2 | 32 | 74 | 68.2 | 9.46 | 2900 | 118.2 | 6 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 185 | |
| CDM32-6 | 32 | 81 | 68.2 | 10.36 | 2900 | 118.2 | 6 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 185 | |
| CDM32-7-2 | 32 | 88 | 68.2 | 11.25 | 2900 | 118.2 | 7 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 199 | |
| CDM32-7 | 32 | 95 | 68.2 | 12.15 | 2900 | 118.2 | 7 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 199 | |
| CDM32-8-2 | 32 | 102 | 68.2 | 13 | 2900 | 118.2 | 8 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 203 | |
| CDM32-8 | 32 | 109 | 68.2 | 14 | 2900 | 118.2 | 8 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 203 | |
| CDM32-9-2 | 32 | 117 | 68.2 | 15 | 2900 | 118.2 | 9 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 222 | |
| CDM32-9 | 32 | 124 | 68.2 | 15.85 | 2900 | 118.2 | 9 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 222 | |
| CDM32-10-2 | 32 | 131 | 68.2 | 16.75 | 2900 | 118.2 | 10 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 227 | |
| CDM32-10 | 32 | 138 | 68.2 | 17.64 | 2900 | 118.2 | 10 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 227 | |
| CDM32-11-2 | 32 | 146 | 68.2 | 18.67 | 2900 | 118.2 | 11 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 272 | |
| CDM32-11 | 32 | 153 | 68.2 | 19.56 | 2900 | 118.2 | 11 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 272 | |
| CDM32-12-2 | 32 | 160 | 68.2 | 20.46 | 2900 | 118.2 | 12 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 276 | |
| CDM32-12 | 32 | 167 | 68.2 | 21.35 | 2900 | 118.2 | 12 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 276 | |
| CDM32-13-2 | 32 | 174 | 68.2 | 22.25 | 2900 | 118.2 | 13 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 337 | |
| CDM32-13 | 32 | 181 | 68.2 | 23.14 | 2900 | 118.2 | 13 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 337 | |
| CDM32-14-2 | 32 | 189 | 68.2 | 24.17 | 2900 | 118.2 | 14 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 341 | |
| CDM32-14 | 32 | 196 | 68.2 | 25 | 2900 | 118.2 | 14 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 341 | |
| CDM32-15-2 | 32 | 203 | 68.2 | 26 | 2900 | 118.2 | 15 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 345 | |
| CDM32-15 | 32 | 210 | 68.2 | 26.85 | 2900 | 118.2 | 15 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 345 | |
| CDM32-16-2 | 32 | 218 | 68.2 | 27.87 | 2900 | 118.2 | 16 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 350 | |
| CDM32-16 | 32 | 225 | 68.2 | 28.77 | 2900 | 118.2 | 16 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 350 | |
| 组名: 8 | |||||||||||||
| CDM42-1-1 | 42 | 16 | 69.8 | 2.62 | 2900 | 136 | 1 | -15℃～+70℃ | -15℃～+120℃ | 3 | CDLA-22/WBF16 | 83 | |
| CDM42-1 | 42 | 20 | 69.8 | 3.28 | 2900 | 136 | 1 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-22/WBF16 | 90 | |
| CDM42-2-2 | 42 | 32 | 69.8 | 5.25 | 2900 | 136 | 2 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-22/WBF16 | 105 | |
| CDM42-2 | 42 | 41 | 69.8 | 6.72 | 2900 | 136 | 2 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-22/WBF16 | 110 | |
| CDM42-3-2 | 42 | 52 | 69.8 | 8.53 | 2900 | 136 | 3 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 183 | |
| CDM42-3 | 42 | 61 | 69.8 | 10 | 2900 | 136 | 3 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 183 | |
| CDM42-4-2 | 42 | 73 | 69.8 | 12 | 2900 | 136 | 4 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 197 | |
| CDM42-4 | 42 | 81 | 69.8 | 13.28 | 2900 | 136 | 4 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 197 | |
| CDM42-5-2 | 42 | 93 | 69.8 | 15.25 | 2900 | 136 | 5 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 221 | |
| CDM42-5 | 42 | 101 | 69.8 | 16.56 | 2900 | 136 | 5 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 221 | |
| CDM42-6-2 | 42 | 113 | 69.8 | 18.53 | 2900 | 136 | 6 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 261 | |
| CDM42-6 | 42 | 122 | 69.8 | 20 | 2900 | 136 | 6 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 261 | |
| CDM42-7-2 | 42 | 134 | 69.8 | 22 | 2900 | 136 | 7 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 320 | |
| CDM42-7 | 42 | 142 | 69.8 | 23.28 | 2900 | 136 | 7 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 320 | |
| CDM42-8-2 | 42 | 154 | 69.8 | 25.25 | 2900 | 136 | 8 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 324 | |
| CDM42-8 | 42 | 162 | 69.8 | 26.56 | 2900 | 136 | 8 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 324 | |
| CDM42-9-2 | 42 | 174 | 69.8 | 28.53 | 2900 | 136 | 9 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 328 | |
| CDM42-9 | 42 | 183 | 69.8 | 30 | 2900 | 136 | 9 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 352 | |
| CDM42-10-2 | 42 | 194 | 69.8 | 31.81 | 2900 | 136 | 10 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 355 | |
| CDM42-10 | 42 | 203 | 69.8 | 33.29 | 2900 | 136 | 10 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 355 | |
| CDM42-11-2 | 42 | 217 | 69.8 | 35.58 | 2900 | 136 | 11 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 426 | |
| CDM42-11 | 42 | 225 | 69.8 | 36.89 | 2900 | 136 | 11 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 426 | |
| CDM42-12-2 | 42 | 238 | 69.8 | 39 | 2900 | 136 | 12 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 432 | |
| CDM42-12 | 42 | 247 | 69.8 | 40.5 | 2900 | 136 | 12 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 432 | |
| CDM42-13-2 | 42 | 259 | 69.8 | 42.47 | 2900 | 136 | 13 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 438 | |
| 组名: 9 | |||||||||||||
| CDM65-1-1 | 65 | 13 | 72.3 | 3.18 | 2900 | 142 | 1 | -15℃～+70℃ | -15℃～+120℃ | 4 | CDLA-22/WBF16 | 93 | |
| CDM65-1 | 65 | 20 | 72.3 | 4.9 | 2900 | 142 | 1 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-22/WBF16 | 105 | |
| CDM65-2-2 | 65 | 26 | 72.3 | 6.37 | 2900 | 142 | 2 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-22/WBF16 | 110 | |
| CDM65-2-1 | 65 | 33 | 72.3 | 8.08 | 2900 | 142 | 2 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 182 | |
| CDM65-2 | 65 | 40 | 72.3 | 9.8 | 2900 | 142 | 2 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 182 | |
| CDM65-3-2 | 65 | 46 | 72.3 | 11.27 | 2900 | 142 | 3 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 196 | |
| CDM65-3-1 | 65 | 53 | 72.3 | 13 | 2900 | 142 | 3 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 197 | |
| CDM65-3 | 65 | 60 | 72.3 | 14.7 | 2900 | 142 | 3 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 221 | |
| CDM65-4-2 | 65 | 66 | 72.3 | 16.17 | 2900 | 142 | 4 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 225 | |
| CDM65-4-1 | 65 | 73 | 72.3 | 17.88 | 2900 | 142 | 4 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 258 | |
| CDM65-4 | 65 | 80 | 72.3 | 19.6 | 2900 | 142 | 4 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 258 | |
| CDM65-5-2 | 65 | 88 | 72.3 | 21.56 | 2900 | 142 | 5 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 319 | |
| CDM65-5-1 | 65 | 95 | 72.3 | 23.27 | 2900 | 142 | 5 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 319 | |
| CDM65-5 | 65 | 102 | 72.3 | 25 | 2900 | 142 | 5 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 320 | |
| CDM65-6-2 | 65 | 110 | 72.3 | 27 | 2900 | 142 | 6 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 325 | |
| CDM65-6-1 | 65 | 117 | 72.3 | 28.66 | 2900 | 142 | 6 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 349 | |
| CDM65-6 | 65 | 124 | 72.3 | 30.38 | 2900 | 142 | 6 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 349 | |
| CDM65-7-2 | 65 | 132 | 72.3 | 32.34 | 2900 | 142 | 7 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 353 | |
| CDM65-7-1 | 65 | 139 | 72.3 | 34 | 2900 | 142 | 7 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 353 | |
| CDM65-7 | 65 | 146 | 72.3 | 35.77 | 2900 | 142 | 7 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 420 | |
| CDM65-8-2 | 65 | 154 | 72.3 | 37.73 | 2900 | 142 | 8 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 424 | |
| CDM65-8-1 | 65 | 161 | 72.3 | 39.44 | 2900 | 142 | 8 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 424 | |
| 组名: 10 | |||||||||||||
| CDM85-1-1 | 85 | 14 | 73.9 | 4.39 | 2900 | 145.3 | 1 | -15℃～+70℃ | -15℃～+120℃ | 5.5 | CDLA-22/WBF16 | 105 | |
| CDM85-1 | 85 | 20 | 73.9 | 6.27 | 2900 | 146 | 1 | -15℃～+70℃ | -15℃～+120℃ | 7.5 | CDLA-22/WBF16 | 110 | |
| CDM85-2-2 | 85 | 30 | 73.9 | 9.4 | 2900 | 145.3 | 2 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-22/WBF16 | 181 | |
| CDM85-2 | 85 | 41 | 73.9 | 12.85 | 2900 | 146 | 2 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-22/WBF16 | 192 | |
| CDM85-3-2 | 85 | 52 | 73.9 | 16.3 | 2900 | 146 | 3 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-22/WBF16 | 215 | |
| CDM85-3 | 85 | 64 | 73.9 | 20 | 2900 | 146 | 3 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-22/WBF16 | 252 | |
| CDM85-4-2 | 85 | 75 | 73.9 | 23.51 | 2900 | 146 | 4 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 312 | |
| CDM85-4 | 85 | 86 | 73.9 | 27 | 2900 | 146 | 4 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-22/WBF16 | 312 | |
| CDM85-5-2 | 85 | 98 | 73.9 | 30.72 | 2900 | 146 | 5 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 336 | |
| CDM85-5 | 85 | 110 | 73.9 | 34.48 | 2900 | 146 | 5 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-22/WBF16 | 336 | |
| CDM85-6-2 | 85 | 122 | 73.9 | 38.24 | 2900 | 146 | 6 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 407 | |
| CDM85-6 | 85 | 134 | 73.9 | 42 | 2900 | 146 | 6 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-22/WBF16 | 407 | |
| 组名: 11 | |||||||||||||
| CDM120-1 | 120 | 18.5 | 74.7 | 8.1 | 2950 | 143.7 | 1 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-32/WBF16 | 230 | |
| CDM120-2-2 | 120 | 28.5 | 74.7 | 12.48 | 2950 | 132 | 2 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-32/WBF16 | 245 | |
| CDM120-2-1 | 120 | 34.5 | 74.7 | 15 | 2950 | 143.7 | 2 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-32/WBF16 | 250 | |
| CDM120-2 | 120 | 40 | 74.7 | 17.51 | 2950 | 143.7 | 2 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-32/WBF16 | 285 | |
| CDM120-3-2 | 120 | 49 | 74.7 | 21.45 | 2950 | 143.7 | 3 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-32/WBF16 | 360 | |
| CDM120-3-1 | 120 | 55.5 | 74.7 | 24.3 | 2950 | 143.7 | 3 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-32/WBF16 | 360 | |
| CDM120-3 | 120 | 61 | 74.7 | 26.7 | 2950 | 143.7 | 3 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-32/WBF16 | 360 | |
| CDM120-4-2 | 120 | 69 | 74.7 | 30.2 | 2950 | 143.7 | 4 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-32/WBF16 | 400 | |
| CDM120-4-1 | 120 | 76 | 74.7 | 33.27 | 2950 | 143.7 | 4 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-32/WBF16 | 400 | |
| CDM120-4 | 120 | 81 | 74.7 | 35.46 | 2950 | 143.7 | 4 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-32/WBF16 | 460 | |
| CDM120-5-2 | 120 | 90 | 74.7 | 39.4 | 2950 | 143.7 | 5 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-32/WBF16 | 470 | |
| CDM120-5-1 | 120 | 97 | 74.7 | 42.46 | 2950 | 143.7 | 5 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-32/WBF16 | 470 | |
| CDM120-5 | 120 | 101.5 | 74.7 | 44.43 | 2950 | 143.7 | 5 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-32/WBF16 | 575 | |
| CDM120-6-2 | 120 | 110 | 74.7 | 48.15 | 2950 | 143.7 | 6 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-32/WBF16 | 585 | |
| CDM120-6-1 | 120 | 118 | 74.7 | 51.65 | 2950 | 143.7 | 6 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-32/WBF16 | 585 | |
| CDM120-6 | 120 | 123 | 74.7 | 53.84 | 2950 | 143.7 | 6 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 705 | |
| CDM120-7-2 | 120 | 130 | 74.7 | 57 | 2950 | 143.7 | 7 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 715 | |
| CDM120-7-1 | 120 | 137.5 | 74.7 | 60.19 | 2950 | 143.7 | 7 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 715 | |
| CDM120-7 | 120 | 145 | 74.7 | 63.47 | 2950 | 143.7 | 7 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 715 | |
| 组名: 12 | |||||||||||||
| CDM150-1-1 | 150 | 12.5 | 75.8 | 6.74 | 2950 | 139 | 1 | -15℃～+70℃ | -15℃～+120℃ | 11 | CDLA-32/WBF16 | 230 | |
| CDM150-1 | 150 | 18.5 | 75.8 | 9.98 | 2950 | 151.5 | 1 | -15℃～+70℃ | -15℃～+120℃ | 15 | CDLA-32/WBF16 | 235 | |
| CDM150-2-2 | 150 | 27.5 | 75.8 | 14.83 | 2950 | 139 | 2 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-32/WBF16 | 250 | |
| CDM150-2-1 | 150 | 35 | 75.8 | 18.87 | 2950 | 151.5 | 2 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-32/WBF16 | 295 | |
| CDM150-2 | 150 | 40 | 75.8 | 21.57 | 2950 | 151.5 | 2 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-32/WBF16 | 350 | |
| CDM150-3-2 | 150 | 49 | 75.8 | 26.42 | 2950 | 151.5 | 3 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-32/WBF16 | 360 | |
| CDM150-3-1 | 150 | 56 | 75.8 | 30.2 | 2950 | 151.5 | 3 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-32/WBF16 | 360 | |
| CDM150-3 | 150 | 63 | 75.8 | 34 | 2950 | 151.5 | 3 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-32/WBF16 | 385 | |
| CDM150-4-2 | 150 | 70.5 | 75.8 | 38 | 2950 | 151.5 | 4 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-32/WBF16 | 460 | |
| CDM150-4-1 | 150 | 77 | 75.8 | 41.52 | 2950 | 151.5 | 4 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-32/WBF16 | 460 | |
| CDM150-4 | 150 | 84 | 75.8 | 45.3 | 2950 | 151.5 | 4 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-32/WBF16 | 560 | |
| CDM150-5-2 | 150 | 92 | 75.8 | 49.61 | 2950 | 151.5 | 5 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-32/WBF16 | 570 | |
| CDM150-5-1 | 150 | 99 | 75.8 | 53.39 | 2950 | 151.5 | 5 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 690 | |
| CDM150-5 | 150 | 106.5 | 75.8 | 57.43 | 2950 | 151.5 | 5 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 690 | |
| CDM150-6-2 | 150 | 112 | 75.8 | 60.4 | 2950 | 151.5 | 6 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 700 | |
| CDM150-6-1 | 150 | 120.5 | 75.8 | 65 | 2950 | 151.5 | 6 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 700 | |
| CDM150-6 | 150 | 130 | 75.8 | 70 | 2950 | 151.5 | 6 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-32/WBF16 | 700 | |
| 组名: 13 | |||||||||||||
| CDM200-1-B | 200 | 20 | 77.9 | 13.49 | 2950 | 167.568 | 1 | -15℃～+70℃ | -15℃～+120℃ | 18.5 | CDLA-36/WBF16 | 311 | |
| CDM200-1-A | 200 | 24 | 77.9 | 16.19 | 2950 | 173.851 | 1 | -15℃～+70℃ | -15℃～+120℃ | 22 | CDLA-36/WBF16 | 347 | |
| CDM200-1 | 200 | 34 | 77.9 | 23 | 2950 | 188.567 | 1 | -15℃～+70℃ | -15℃～+120℃ | 30 | CDLA-36/WBF16 | 403 | |
| CDM200-2-2B | 200 | 41 | 77.9 | 27.65 | 2950 | 167.568 | 2 | -15℃～+70℃ | -15℃～+120℃ | 37 | CDLA-36/WBF16 | 447 | |
| CDM200-2-2A | 200 | 49 | 77.9 | 33 | 2950 | 173.851 | 2 | -15℃～+70℃ | -15℃～+120℃ | 45 | CDLA-36/WBF16 | 504 | |
| CDM200-2-A | 200 | 59 | 77.9 | 39.8 | 2950 | 188.567 | 2 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-36/WBF16 | 595 | |
| CDM200-2 | 200 | 69 | 77.9 | 46.54 | 2950 | 188.567 | 2 | -15℃～+70℃ | -15℃～+120℃ | 55 | CDLA-36/WBF16 | 595 | |
| CDM200-3-2B | 200 | 75 | 77.9 | 50.59 | 2950 | 188.567 | 3 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-36/WBF16 | 748 | |
| CDM200-3-A-B | 200 | 79 | 77.9 | 53.29 | 2950 | 188.567 | 3 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-36/WBF16 | 748 | |
| CDM200-3-2A | 200 | 84 | 77.9 | 56.66 | 2950 | 188.567 | 3 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-36/WBF16 | 748 | |
| CDM200-3-B | 200 | 89 | 77.9 | 60 | 2950 | 188.567 | 3 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-36/WBF16 | 748 | |
| CDM200-3-A | 200 | 93 | 77.9 | 62.73 | 2950 | 188.567 | 3 | -15℃～+70℃ | -15℃～+120℃ | 75 | CDLA-36/WBF16 | 748 | |
| CDM200-3 | 200 | 103 | 77.9 | 69.47 | 2950 | 188.567 | 3 | -15℃～+70℃ | -15℃～+120℃ | 90 | CDLA-36/WBF16 | 817 | |
| CDM200-4-2B | 200 | 110 | 77.9 | 74.2 | 2950 | 188.567 | 4 | -15℃～+70℃ | -15℃～+120℃ | 90 | CDLA-36/WBF16 | 830 | |
| CDM200-4-2A | 200 | 118 | 77.9 | 79.59 | 2950 | 188.567 | 4 | -15℃～+70℃ | -15℃～+120℃ | 110 | CDLA-36/WBF16 | 1180 | |
| CDM200-4-A | 200 | 128 | 77.9 | 86.34 | 2950 | 188.567 | 4 | -15℃～+70℃ | -15℃～+120℃ | 110 | CDLA-36/WBF16 | 1180 | |
| CDM200-4 | 200 | 138 | 77.9 | 93 | 2950 | 188.567 | 4 | -15℃～+70℃ | -15℃～+120℃ | 110 | CDLA-36/WBF16 | 1180 |
公司地址：苏州市相城区人民路4555号
联系电话：4001-077-588
手机号码：17712658188
公司邮箱：bengzhijia@126.com
扫码关注公众号
网站二维码
客服1
